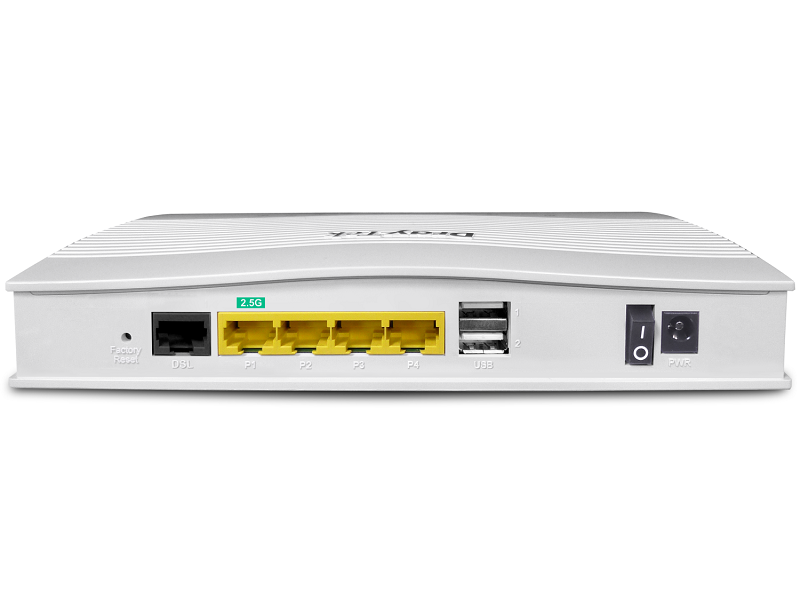

| Hardwareschnittstellen | 1 x DSL-Port (RJ11)
1 x 2,5GbE WAN/LAN
3 x GbE LAN
2x USB (2.0)
1 x Factory Reset-Knopf
1x WLAN An/Aus/WPS-Knopf
1 x Netzschalter |
| Performance | NAT Sitzungen: 50.000
Max. NAT-Durchsatz (Mbit/s): 2.300 |
| VDSL2 Profile | 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b |
| VDSL Standards | ITU-T G.993.1 (VDSL)
ITU-T G.993.2 Annex A/B/M/Q
G.997.1 |
| ADSL Standards | ITU-T G.992.1(G.dmt)
T1.413 Issue 2 |
| Band Plan | 998, 997 |
| Internetverbindungen | IPv4: PPPoE, DHCP, Static IP
IPv6: PPP, DHCPv6, Static IPv6, TSPC, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
Failover
Connection Detection: ARP, Ping
WAN Data Budget
Dynamic DNS
DrayDDNS |
| WLAN | 2.4GHz WLAN: 802.11ax 2×2 MIMO
5GHz WLAN: 802.11ax 3×3 MU-MIMO
WiFi Antenne (Extern): 2
WiFi Antenne (Intern): 1
2,4GHz Antenna Gain (dBi): 2,6
5GHz Antenna Gain (dBi): 2,7
2,4GHz Max. Link Rate: 574Mbit/s
5GHz Max. Link Rate: 2402Mbit/s
Max. SSIDs (pro Band): 8 (4)
Security Mode: OWE, WEP, WPA, WPA2, WPA2/WPA, WPA3, WPA3/WPA2
Authentication: Pre-Shared Key
OFDMA
Roaming: Assisted Roaming
WPS: WPS Button, PIN Code
Zugriffskontrolle: Zugriffsliste, Client Isolierung, SSID verstecken, Zeitprofile
AirTime Fairness
Band Steering
WMM
Mesh (nur 5GHz): Root |
| LAN | Subnetze: 4
VLAN: 802.1q Tag-based VLAN, Port-based VLAN
Max. VLAN: 8
DHCP Server: Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
Wired 802.1x Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal (Profile): 2
Hotspot Authentication: Click-Through, External Portal Server |
| Netzwerk | Routing: IPv4 Static Route, IPv6 Static Route, Policy Route, Inter-VLAN Route, RIP v1/v2, OSPF(V2/V3), BGP
Policy-based Routing: Protokoll, IP Adresse, Port
DNS Security (DNSSEC)
IGMP: IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave
Local RADIUS Server |
| Bandbreitenmanagement | Traffic Shaping Policy
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service): IP Adresse, Port, Anwendung
APP QoS
Default Policy
VoIP Prioritization |
| Management | Lokale Dienste: HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
Konfiguration sichern und wiederherstellen
Firmware Upgrade: WUI, TFTP, TR-069
Zugriffskontrolle: Zugriffsliste, Brute Force Protection
Benachrichtigung: SMS, EMail
SNMP: v1, v2c, v3
Syslog
Virtual AP Controller: Bis zu 20 APs
Virtual Switch Controller: Bis zu 5 Switches
VigorACS Management (seit FW): 5.3.1 |
| Sicherheit | IP Reputation Filter
Firewall Filter: IP, Inhalt, Traffic
Defense Setup: ARP Spoofing, IP Spoofing
MAC Filtering Profile
IPv6 Address Security |
| IAM | Benutzer & Gruppen
Access Policies
Group Policies
Conditional Access Policy
Resources
Account Status
Sichern und wiederherstellen |
| VPN | Max. 16 VPN Tunnel
EasyVPN
Protokolle: IPsec, IKEv1/IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN, WireGuard
IPsec VPN Durchsatz (AES 256 bits) (single-directional) (Mbit/s): 300
WireGuard VPN Durchsatz (single-directional) (Mbit/s): 50
User Authentication: Local, RADIUS, TACACS+, mOTP, TOTP
IKE Authentication: Pre-Shared Key, X.509
IPsec Authentication: SHA-1, SHA-256
Encryption: DES, 3DES, AES
Single-Armed VPN
NAT-Traversal (NAT-T)
VPN Connection Status
Sichern und wiederherstellen |
| Temperatur | Betriebstemperatur: 0°C bis 45°C
Umgebungstemperatur: -25°C bis 70°C
Luftfeuchtigkeit: 10-90% |
| Stromverbrauch Maße | Max. 21,6 W, DC 12V @1,8A
207mm x 131mm x 42mm |
